Schaltplan und Codebeispiel

So schließt du den LED-Matrix-Modul MAX7219 Grün an einen Arduino UNO oder ESP32 an, mit einem Beispiel-Sketch, den du direkt hochladen kannst.

MAX7219 8x8 LED-Matrix-Display-Demo

Dieses Projekt zeigt, wie man eine 8x8 MAX7219 LED-Matrix mit einem Arduino Uno ansteuert. Der Sketch initialisiert das Display und wechselt zwischen der Anzeige eines Herzens, eines Smileys und einer Animation eines sich ausdehnenden Quadrats.

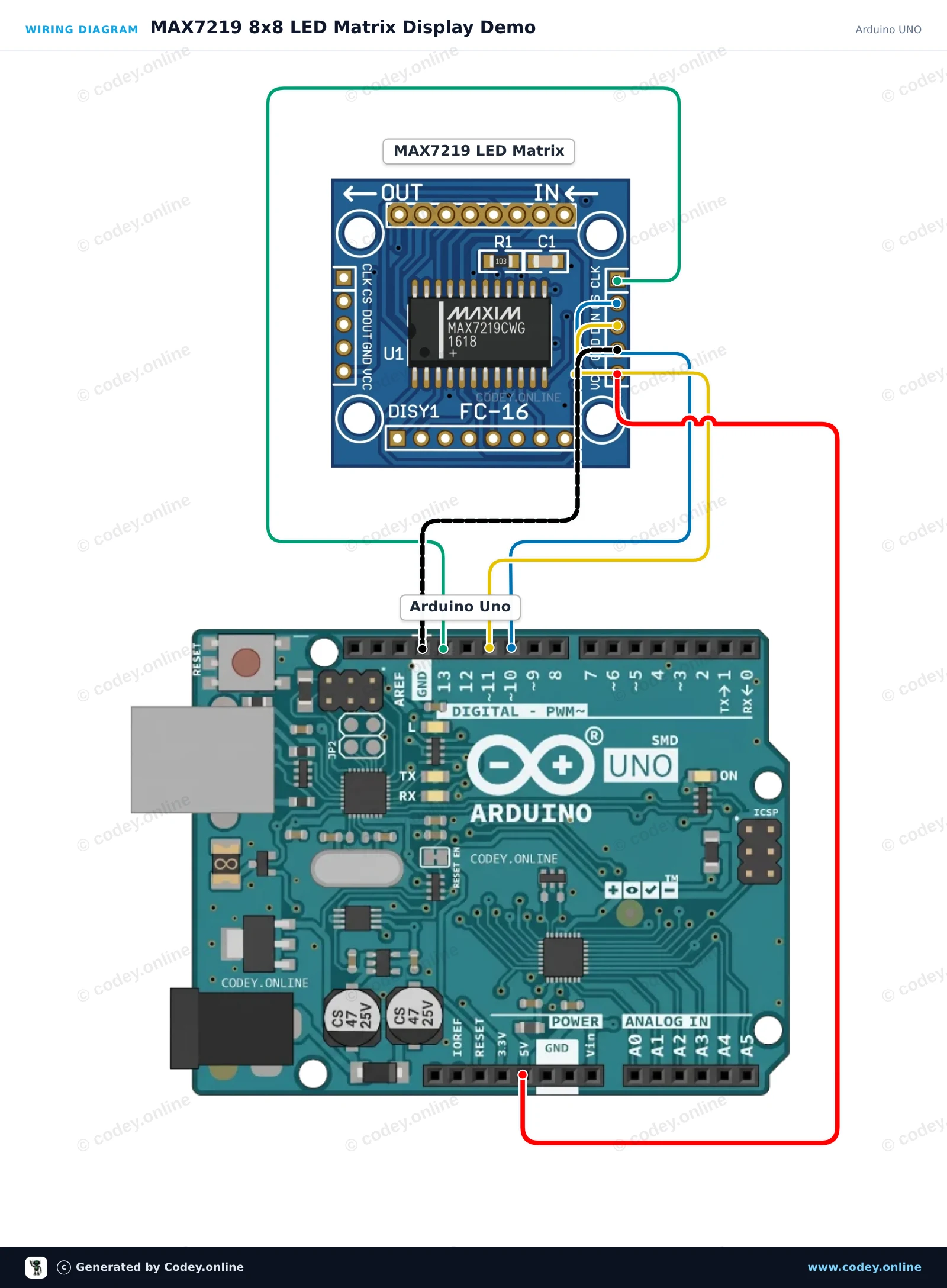

Anschlussplan: LED-Matrix-Modul MAX7219 Grün an einem Arduino UNO
Anschlussplan · Zum Vergrößern klicken

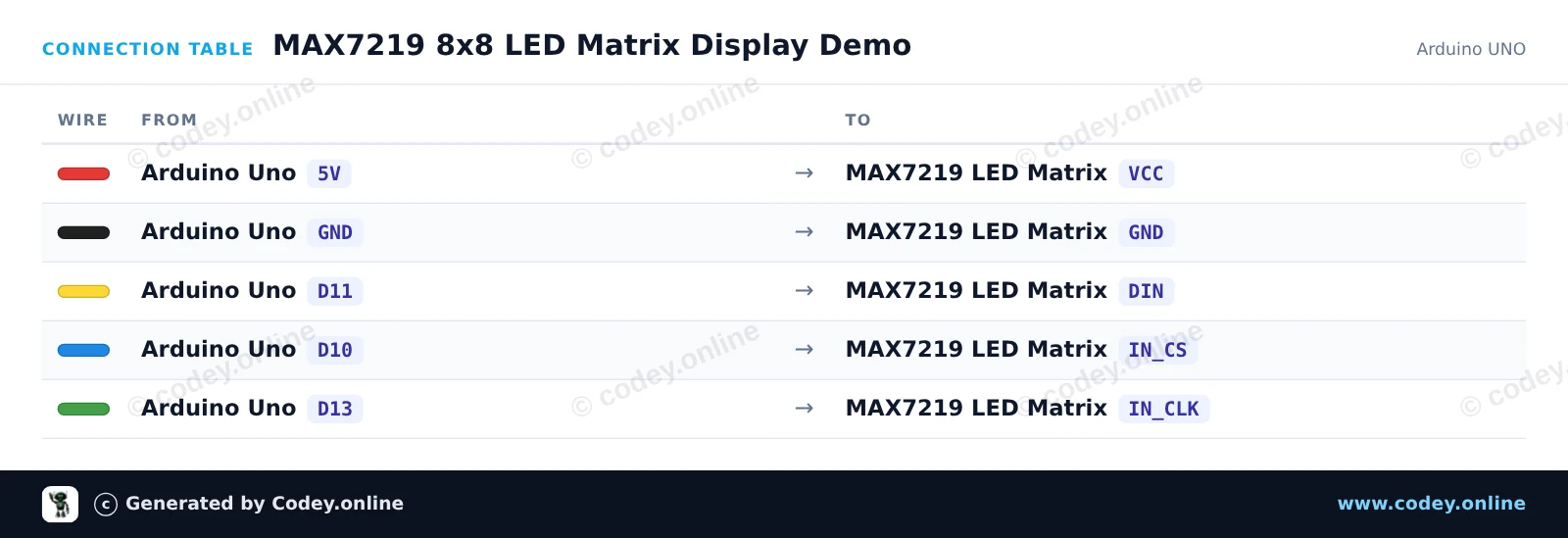

Anschlusstabelle: LED-Matrix-Modul MAX7219 Grün an einem Arduino UNO
Anschlusstabelle · Zum Vergrößern klicken
MAX7219_8x8_LED_Matrix_Display_Demo.ino · kompiliert und getestet
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 8x8 LED Matrix Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : LedControl 1.0.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <LedControl.h>

const int DIN_PIN = 11;
const int CS_PIN  = 10;
const int CLK_PIN = 13;

LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);

const byte HEART[8] = {
  B00000000,
  B01100110,
  B11111111,
  B11111111,
  B11111111,
  B01111110,
  B00111100,
  B00011000
};

const byte SMILE[8] = {
  B00111100,
  B01000010,
  B10100101,
  B10000001,
  B10100101,
  B10011001,
  B01000010,
  B00111100
};

void displayPattern(const byte pattern[8]) {
  for (int row = 0; row < 8; row++) {
    lc.setRow(0, row, pattern[row]);
  }
}

void setup() {
  Serial.begin(115200);
  Serial.println(F("MAX7219 LED Matrix Demo"));

  lc.shutdown(0, false);  // Wake up display
  lc.setIntensity(0, 8);   // Set brightness (0-15)
  lc.clearDisplay(0);
}

void loop() {
  // Show Heart
  displayPattern(HEART);
  delay(1500);

  // Show Smile
  displayPattern(SMILE);
  delay(1500);

  // Dot scan animation
  lc.clearDisplay(0);
  for (int row = 0; row < 8; row++) {
    for (int col = 0; col < 8; col++) {
      lc.setLed(0, row, col, true);
      delay(20);
    }
  }
  delay(500);
  lc.clearDisplay(0);
  delay(300);
}

Benötigte Bibliotheken: LedControl 1.0.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online

MAX7219 8x8 LED-Matrix-Demo

Dieses Projekt nutzt die Hardware-SPI-Schnittstelle des ESP32, um eine 8x8 MAX7219 LED-Matrix ohne externe Libraries anzusteuern. Der Sketch initialisiert das Display und wechselt zwischen einem Smiley, einem Herzsymbol und einer Zeilen-Scan-Animation.

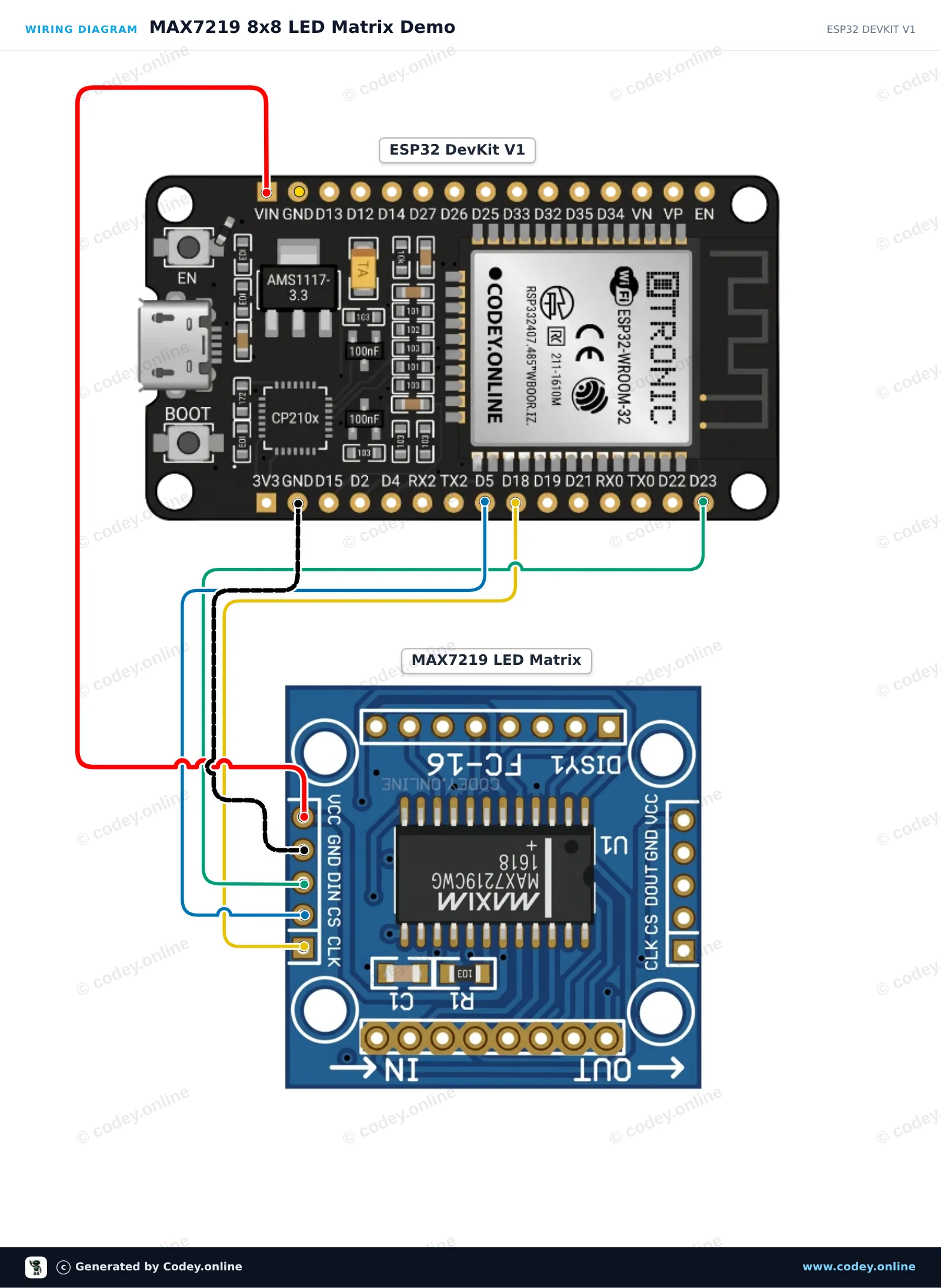

Anschlussplan: LED-Matrix-Modul MAX7219 Grün an einem ESP32 DevKit V1
Anschlussplan · Zum Vergrößern klicken

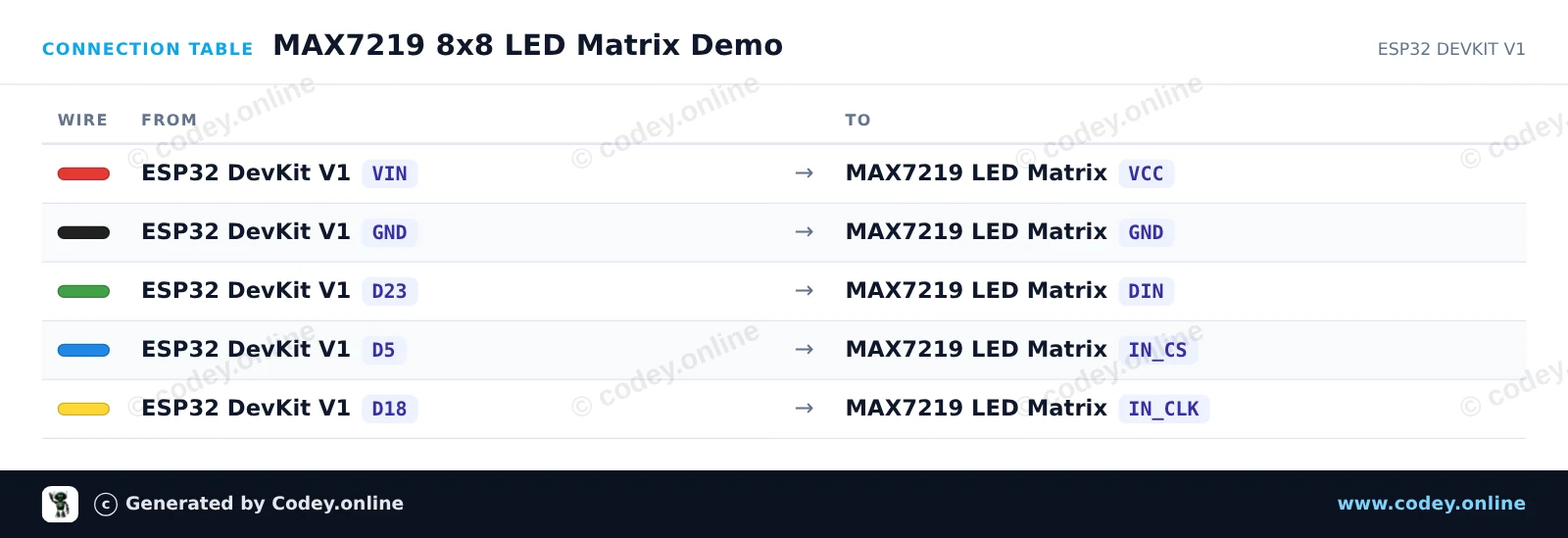

Anschlusstabelle: LED-Matrix-Modul MAX7219 Grün an einem ESP32 DevKit V1
Anschlusstabelle · Zum Vergrößern klicken
MAX7219_8x8_LED_Matrix_Demo.ino · kompiliert und getestet
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : MAX7219 8x8 LED Matrix Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : LED Matrix Module MAX7219
 *  Libraries : none (built-in)
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <SPI.h>

const int CS_PIN = 5;

// MAX7219 register addresses
const byte REG_NOOP   = 0x00;
const byte REG_DIGIT0 = 0x01;
const byte REG_DECODE = 0x09;
const byte REG_INTEN  = 0x0A;
const byte REG_SCAN   = 0x0B;
const byte REG_SHUT   = 0x0C;
const byte REG_TEST   = 0x0F;

// 8x8 Bitmaps
const byte SMILE[8] = {
  0b00111100,
  0b01000010,
  0b10100101,
  0b10000001,
  0b10100101,
  0b10011001,
  0b01000010,
  0b00111100
};

const byte HEART[8] = {
  0b00000000,
  0b01100110,
  0b11111111,
  0b11111111,
  0b11111111,
  0b01111110,
  0b00111100,
  0b00011000
};

void max7219Send(byte reg, byte data) {
  digitalWrite(CS_PIN, LOW);
  SPI.transfer(reg);
  SPI.transfer(data);
  digitalWrite(CS_PIN, HIGH);
}

void clearDisplay() {
  for (byte i = 1; i <= 8; i++) {
    max7219Send(i, 0x00);
  }
}

void displayBitmap(const byte bitmap[8]) {
  for (byte i = 0; i < 8; i++) {
    max7219Send(i + 1, bitmap[i]);
  }
}

void setup() {
  Serial.begin(115200);
  pinMode(CS_PIN, OUTPUT);
  digitalWrite(CS_PIN, HIGH);

  // Initialize hardware SPI (SCK=18, MISO=19, MOSI=23, SS=5)
  SPI.begin(18, 19, 23, CS_PIN);

  // Configure MAX7219 registers
  max7219Send(REG_TEST, 0x00);   // Normal operation (display test off)
  max7219Send(REG_SCAN, 0x07);   // Scan all 8 digits/rows
  max7219Send(REG_DECODE, 0x00); // Raw matrix mode (no BCD decoding)
  max7219Send(REG_INTEN, 0x04);  // Medium brightness (0x00 to 0x0F)
  max7219Send(REG_SHUT, 0x01);   // Normal operation (wake up)
  clearDisplay();

  Serial.println("MAX7219 LED Matrix ready!");
}

void loop() {
  // Show Smiley Face
  displayBitmap(SMILE);
  delay(2000);

  // Show Heart Icon
  displayBitmap(HEART);
  delay(2000);

  // Row scan animation
  clearDisplay();
  for (byte r = 1; r <= 8; r++) {
    max7219Send(r, 0xFF);
    delay(100);
    max7219Send(r, 0x00);
  }
}

Wiring diagram and example code generated by Codey.online — https://www.codey.online

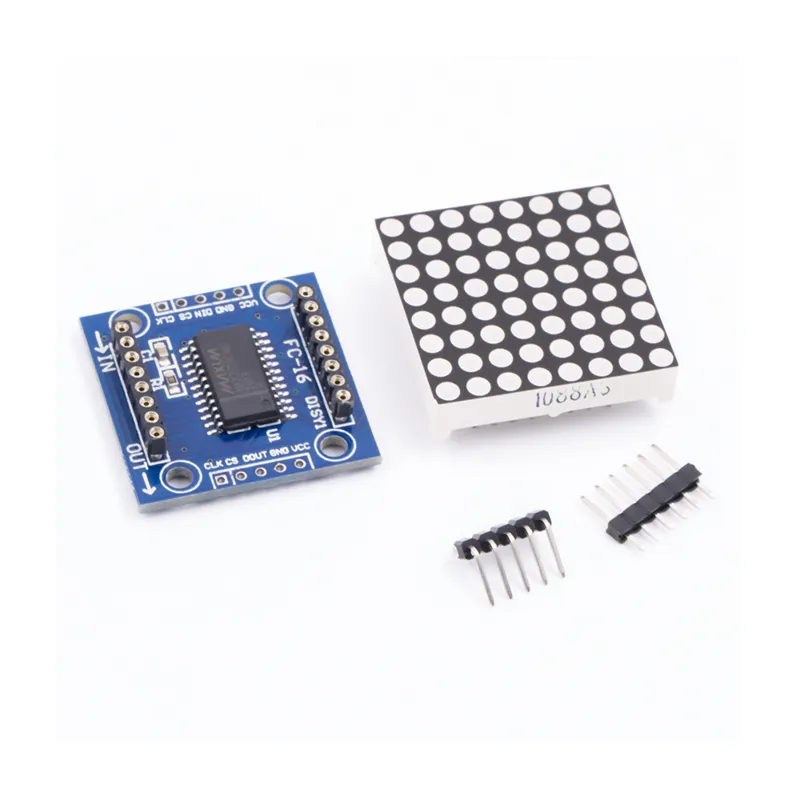

LED-Matrix-Modul MAX7219 Grün

MAX7219 ist ein IC, der zur Ansteuerung von LED-Panels mit gemeinsamer Kathode, 7-Segment-Anzeigen und Pegelanzeigen verwendet wird, die über die SPI-Schnittstelle kommunizieren. Dieses Board verfügt über ein 8x8 Dot-Matrix-LED-Display. Mehrere Module können mithilfe von Header-Verbindungen kaskadiert werden.

Spezifikationen:

  • 8x8 gemeinsames Kathoden-Display
  • Betriebsspannung: 5V
  • Betriebsstrom: 250mA (MAX)
  • Logikspannung der Schnittstelle: 5V
  • Schnittstellentyp: SPI
  • Anschlüsse: VCC, GND, DIN, CS, CLK
  • Kompatibilität: Kompatibel mit Arduino UNO R3 / Arduino Mega2560.
  • Bibliotheken für Arduino: Max72xxPanel und Adafruit_GFX
  • LED-Farbe: grün
  • LED-Größe: 5 mm
  • Anzahl kaskadierbarer Knoten: 32 (MAX)
  • Treiber-IC: MAX7219
  • Sehr geeignet für Arduino DIY-Projekte
  • Abmessungen: 3,2 cm x 3,2 cm x 1,3 cm
  • 4x3 mm Befestigungslöcher
  • MAX7219-Treiber
  • SPI-Schnittstelle
  • Arduino-kompatibel
  • 8x8-Display

Warum dieses Produkt wählen?

  • Geeignet für Arduino – Kompatibel mit UNO R3 und Mega2560.
  • Kaskadierbares Design – Mehrere Module über Header-Verbindungen koppeln.
  • SPI-Schnittstelle – Funktioniert über die SPI-Schnittstelle.
  • Unterstützte Bibliotheken – Max72xxPanel und Adafruit_GFX werden genannt.
  • Grüne LEDs – Ausgeführt mit grünen LEDs.
Spezifikationen
Abmessungen3,2 cm x 3,2 cm x 1,3 cm
Betriebsspannung5V
Auflösung8 x 8
KompatibilitätKompatibel mit Arduino UNO R3 / Arduino Mega2560
Treiber-ICMAX7219
Schnittstellenlogikspannung5V
SchnittstellentypSPI
AnschlüsseVCC, GND, DIN, CS, CLK
Arduino-BibliothekenMax72xxPanel und Adafruit_GFX
LED-Farbegrün
LED-Größe5 mm
Anzahl kaskadierbarer Knoten32 (MAX)
Displaytypgemeinsames Kathodendisplay
Befestigungslöcher4 x 3 mm
Arbeitsstrom250mA (MAX)
